Vertical up and down 3 tier car parking lift
1.Single hydraulic cylinder lifting, Stable operation. The cylinder can set up a relief valve and an explosion-proof valve. To prevent accidents from happening.
2.Pass 120% capacity dynamic load text and 150% static load test.
3.Wire rope balance and lifting, stable performance.
4.Unilateral unlock, a locking device can locking three lifting car spaces at the same time
5.3 running boards can be stacked together,sequentially park Vehicles.
6.The equipment weight is 5T, single car space lifting weight is 2T.
7.Parking space width is 2100 mm, running board length is 4550mm.

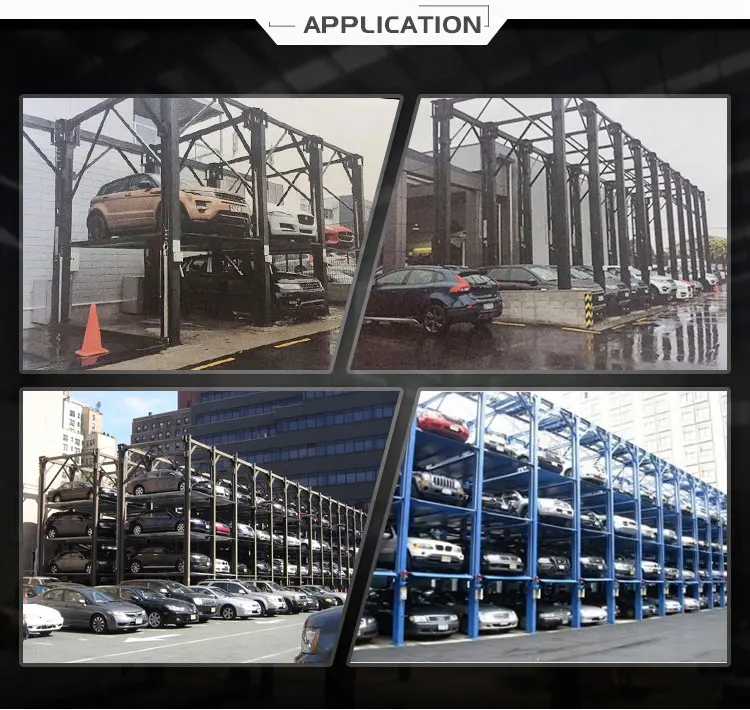

8.Storage type parking, it is suitable for automobile manufacturers,4S stores and others.
9.Mould, tooling fabrication equipment spare parts, ensure the precision.
10.The equipment can be monomers and also can be conjoined, ensure the use of the device space.
Car Size (L×W×H)
5000 mm×1850 mm×1550 mm
2000 kg (each platform)
Mode of drive
Hydraulic & Motor
< 80dB ( A )
380V, 50 HZ,3Phase
Maximum Working Pressure
Hydraulic cylinder with heavy duty wire drive
Modes of operation
High-grade anti-corrosion paint
Mode of control
Mode of Operations
Manual Control buttons / Keys
Em'cy stop; limit switch; auto safety lock
CE , ISO9001
Machine Net Weight
Qingdao Telian Machinery Co.,Ltd as one of the professional parking equipment supplier, is committed to offer the most suitable and cost effective parking equipment solutions for you.
As a manufacturer and supplier, Telian parking focus on quality and technical innovation,use advanced technology to design and produce,which is imported from German, and verified by the CE marking.
Telian parking also provide installation guidance service, customization service and better after-sale service, let you don't have any menace from the rear.
